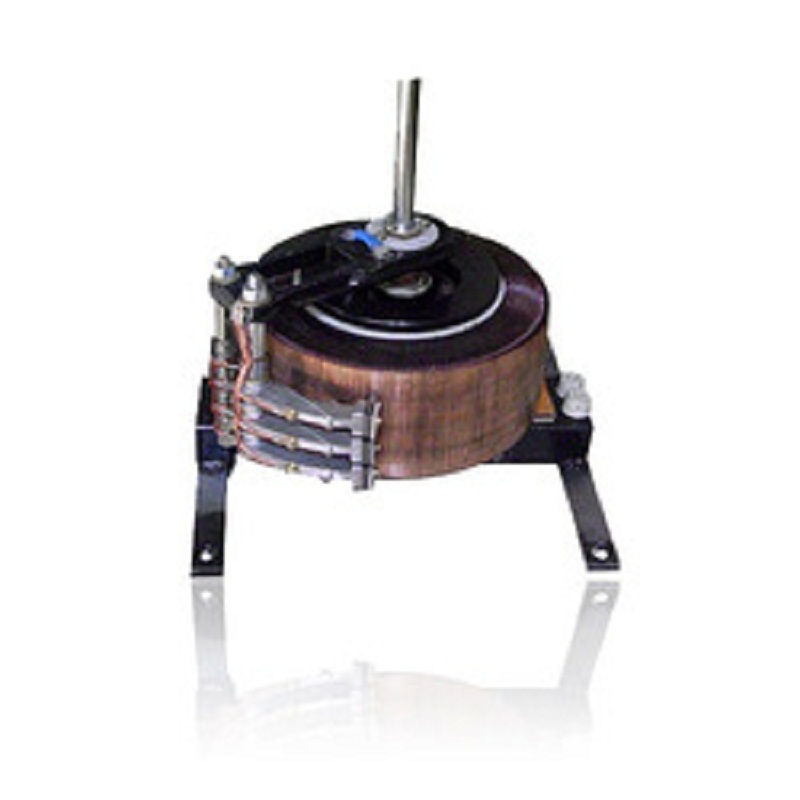

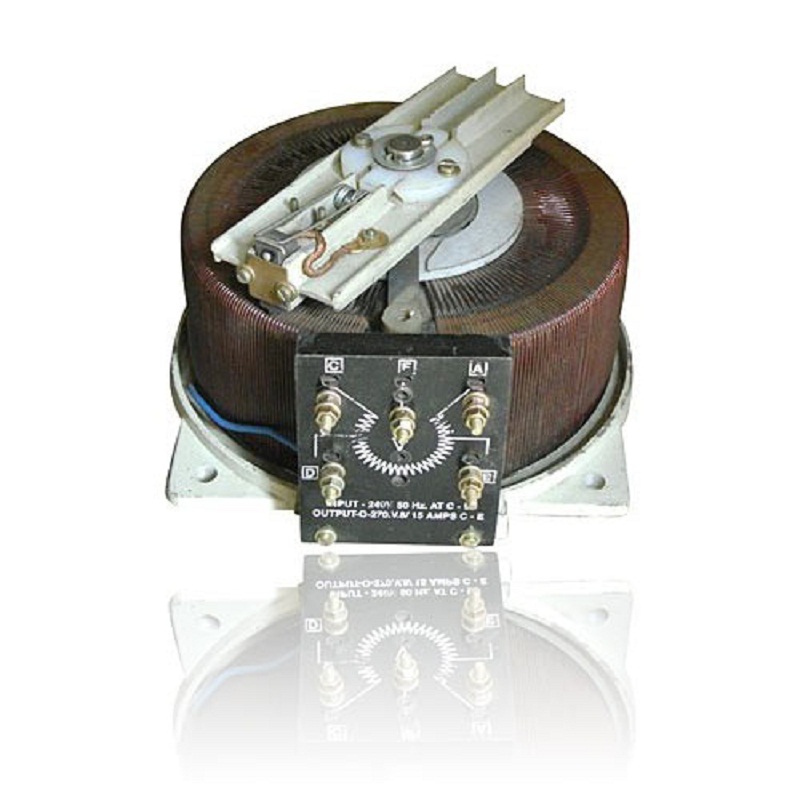

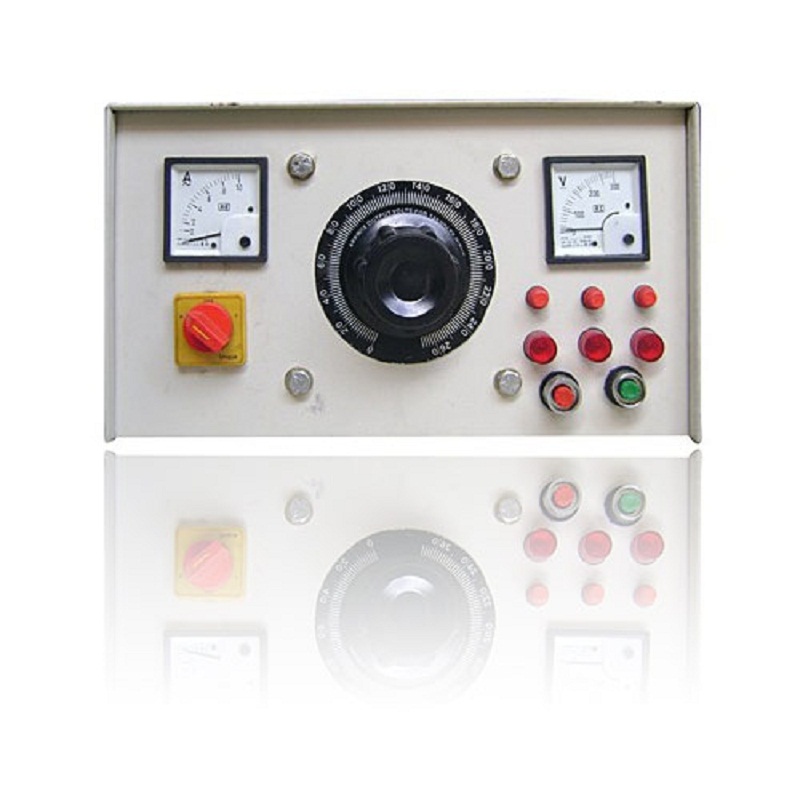

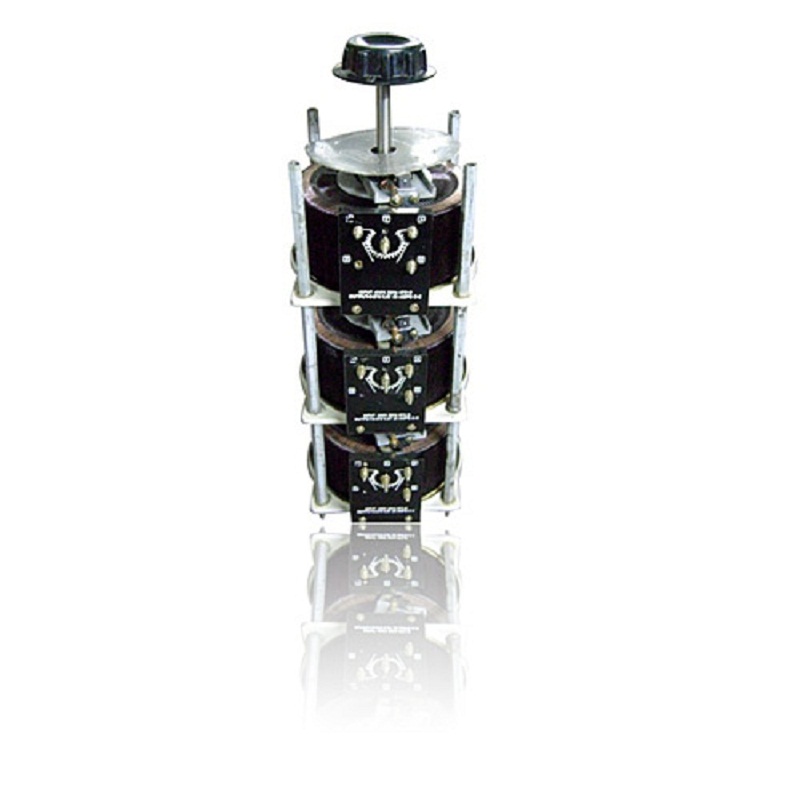

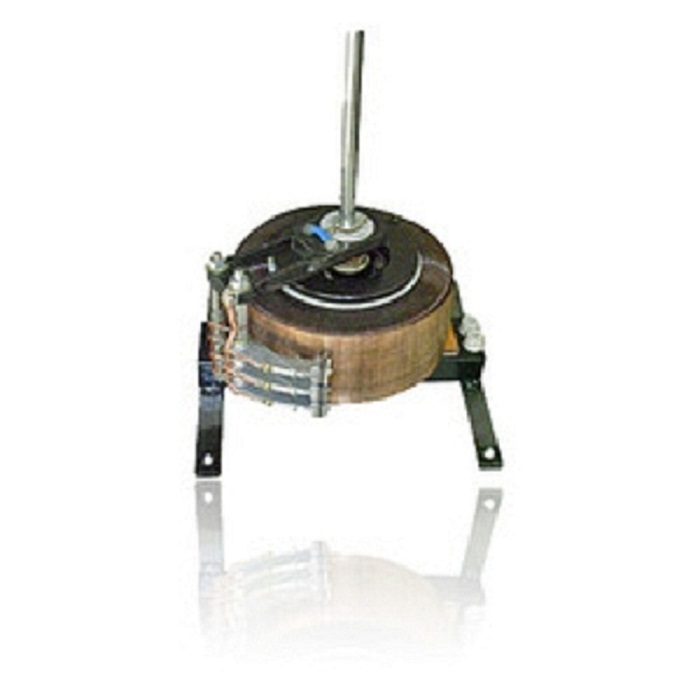

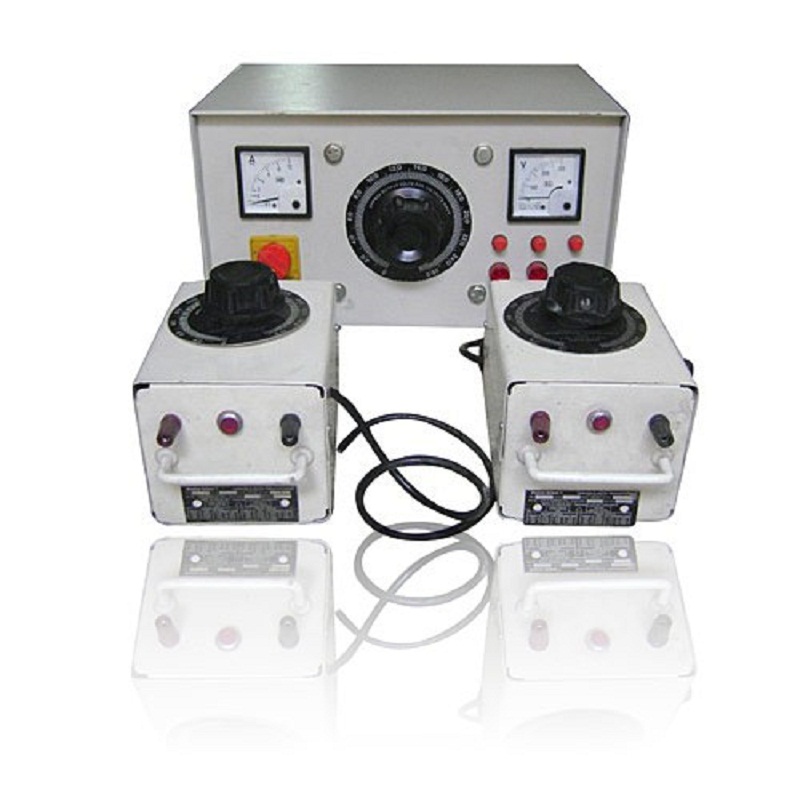

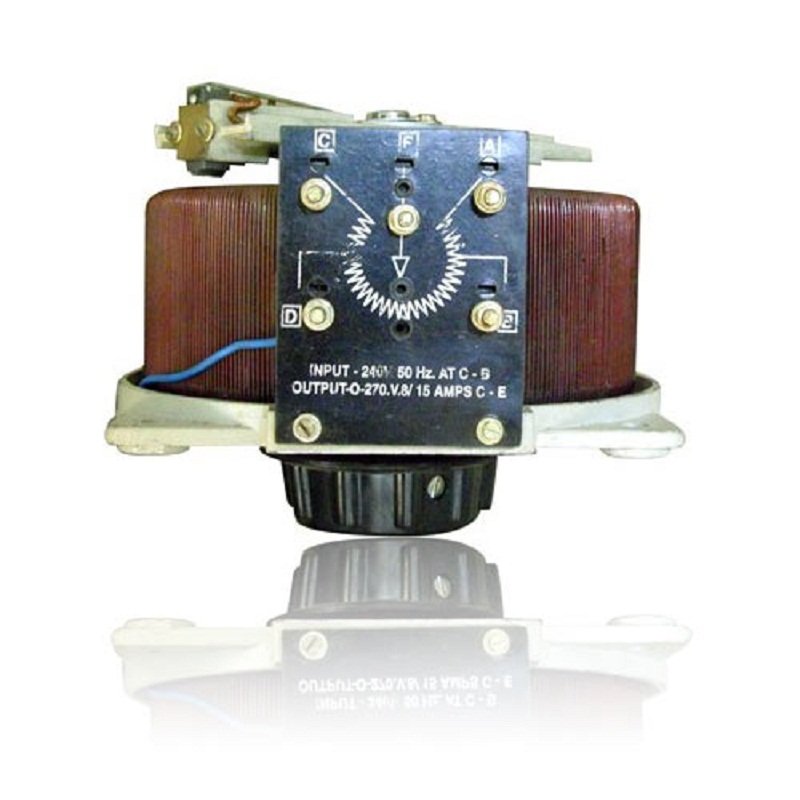

CONTINUOUSLY VARIABLE VOLTAGE AUTO TRANSFORMERS (VARIAC)


APPLICATIONS
  • To obtain variable A. C Voltage from a fixed A. C Voltage.
  • To obtain stabilized A. C Voltage from a varying input supply.
  • In testing of electrical equipment's where a gradually varying is a must to ensure non-destructive testing.
  • To eliminate the possibility of high surges.
  • For exact control of furnace and heater temperature .
RANGE OF PRODUCTS
  • 2 Amps. to 700 Amps. In various models & types.
  • Air cooled type Variac available up to 100 Amps.

POWER SELECT is a reliable name in continuously variable voltage auto­transformers. Manufactured with State -of -art technology. POWER SELECT auto-transformers produce a steplessly variable voltage from available supply voltage.



CHARACTERISTICS

Some well known characteristics of POWER SELECT are:

  • Extremely low magnetizing current due to use of selected material in toroidal form.
  • Easy to maintain and to handle, noiseless construction.
  • Smooth, specially ground silver plated brush track.
  • Production of distortion free replica of input wave - form.
  • Specially made carbon brushes form material having the most desired features and limit regulations to achieve high efficiency.
MODELS

POWER SELECT continuously variable voltage auto - transformers are available in three different models.

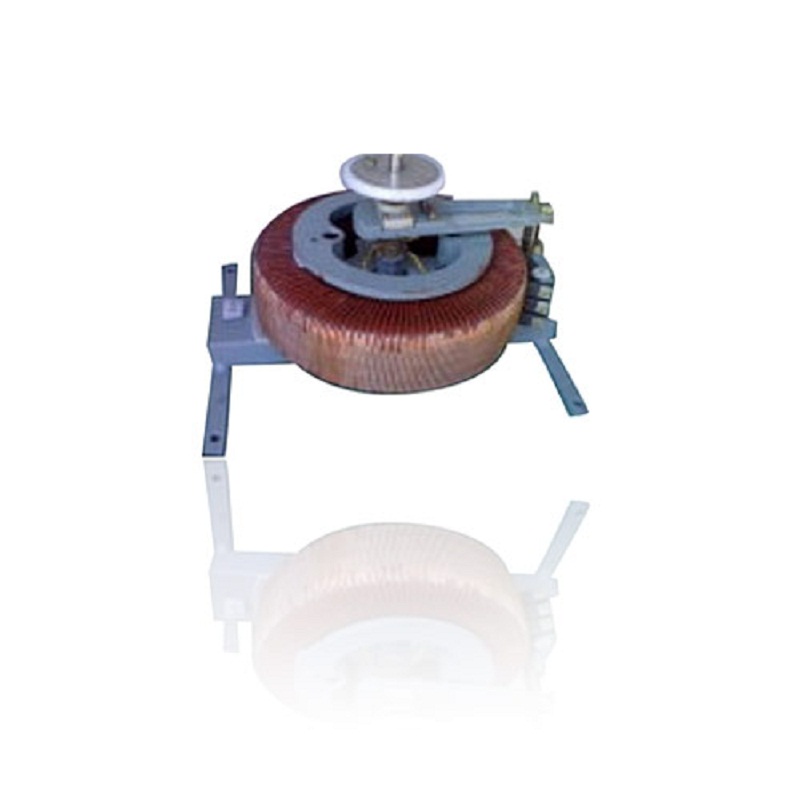

  • Flush Type: For back of Panel mounting (for air - cooled ratings only).

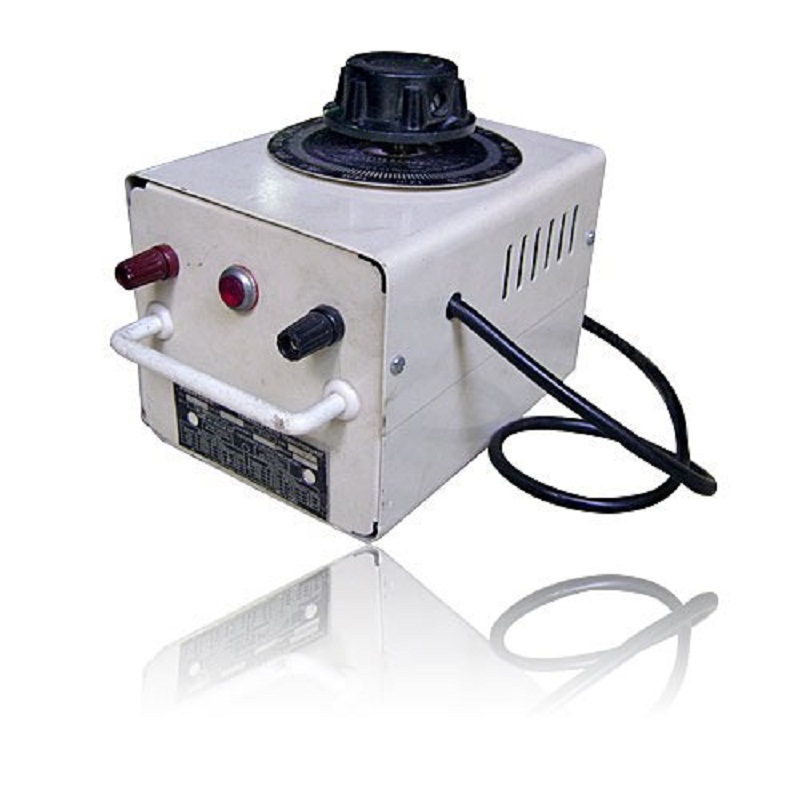

  • Enclosed: For table / floor mounting (for air - cooled ratings only).

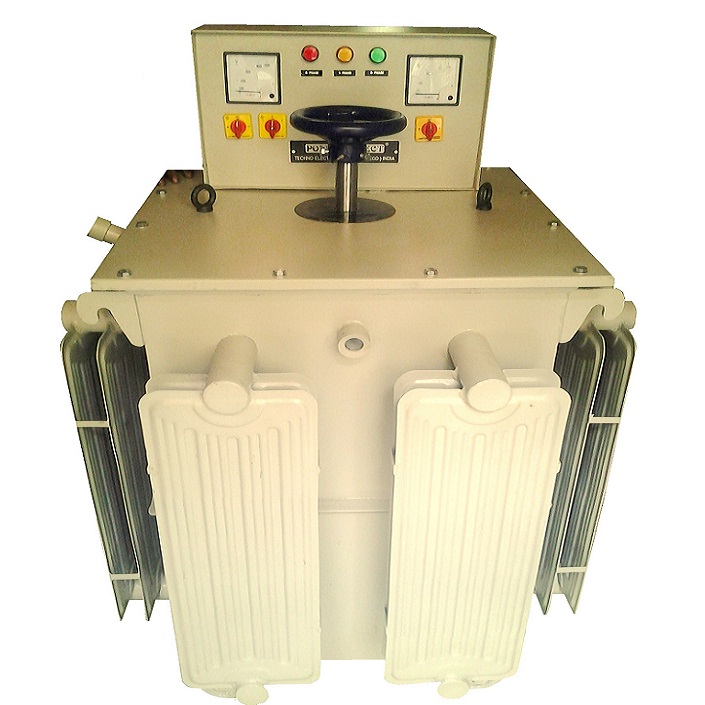

  • Oil Cooled : POWER SELECT of all ratings are available in oil cooled constructions suitable for highly corrosive or hazardous atmosphere,arduous duties involving high surge currents or short time overload capability requirement.

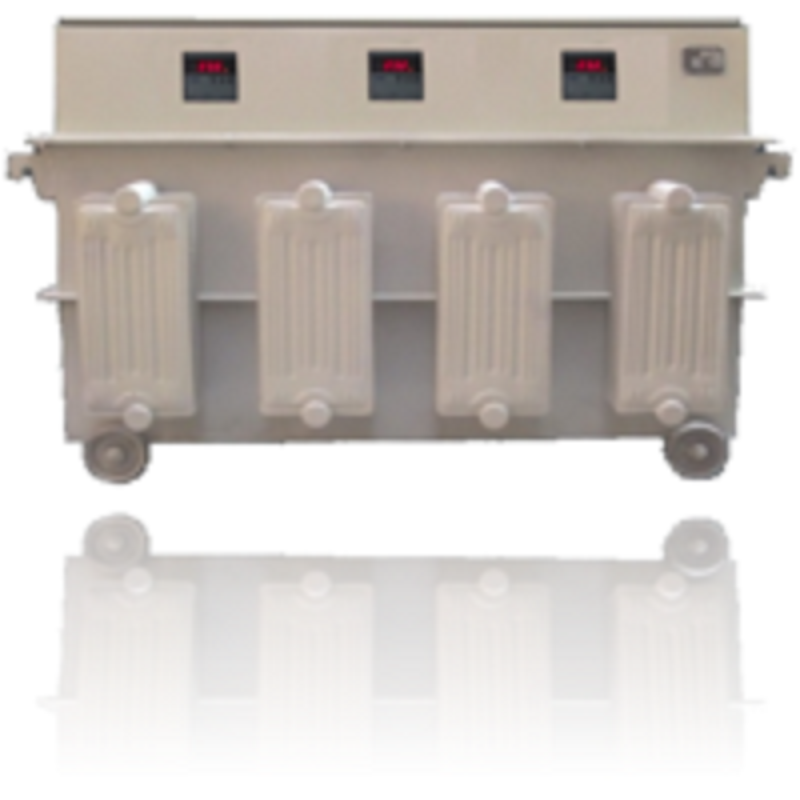

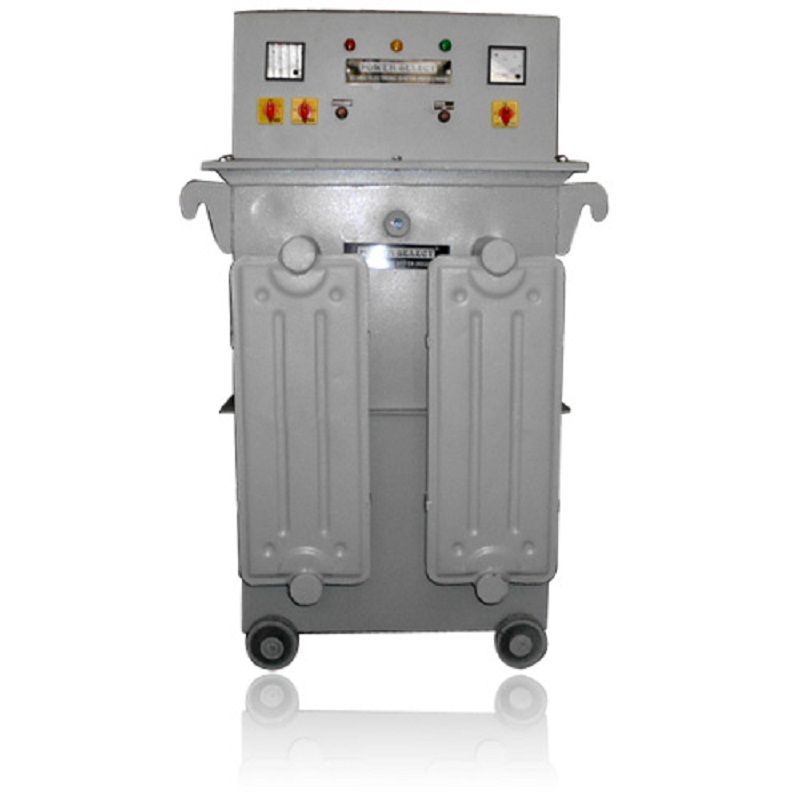

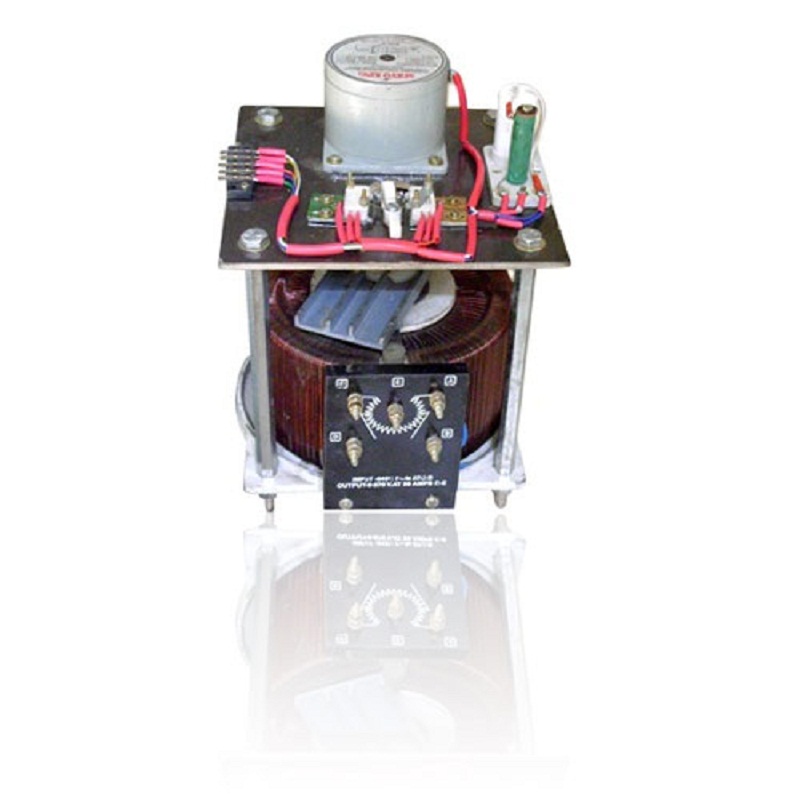

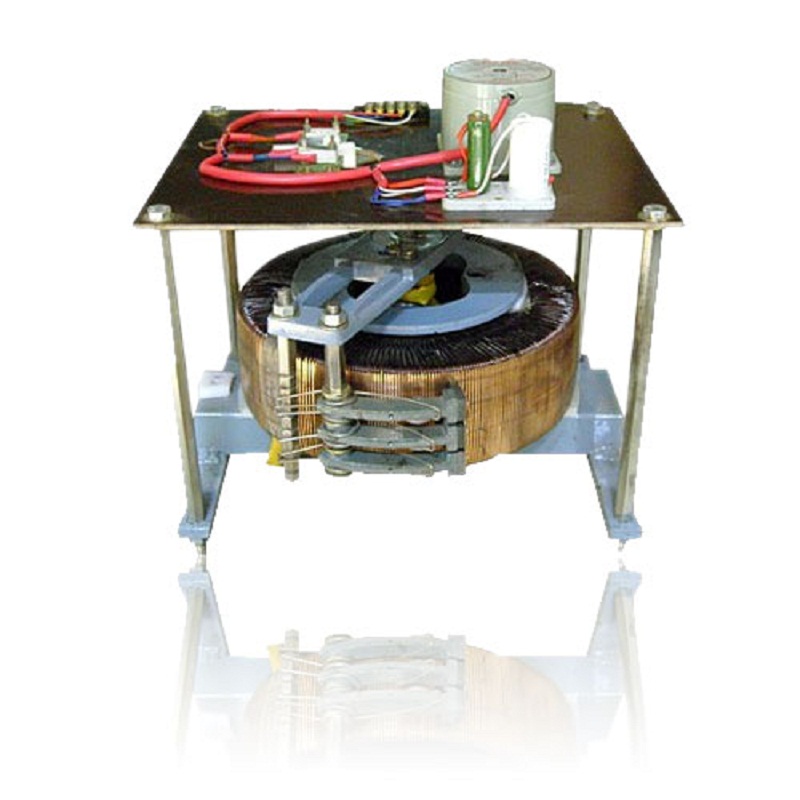

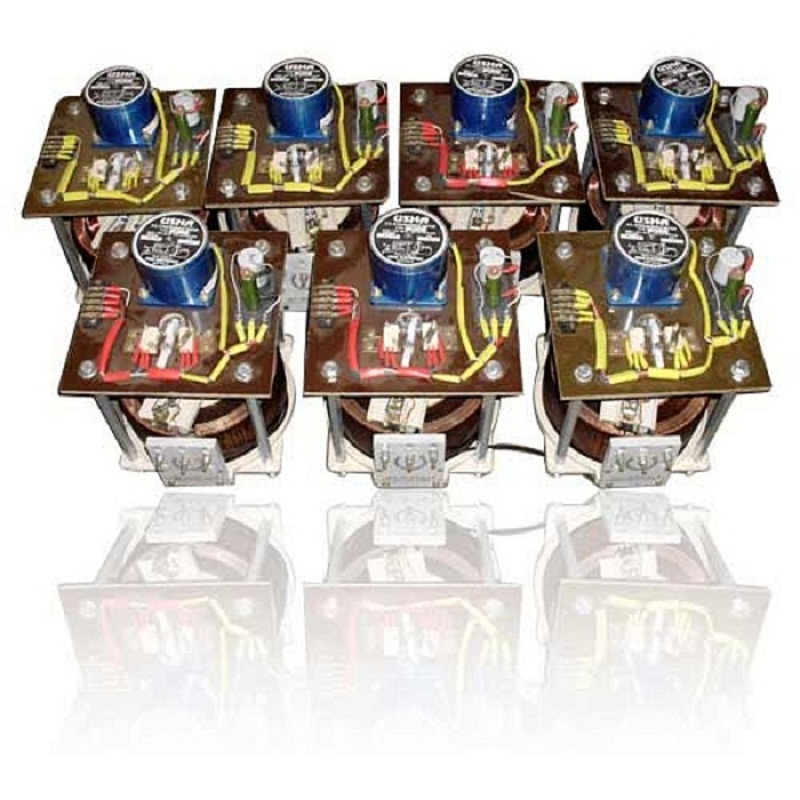

SERVO VOLTAGE STABILIZER


Servo controlled automatic voltage stabilizers are designed normally to meet the requirements of a majority of voltage control problems. Their applications are limited only in cases where an instaneous correction is a must. The stabilizing action needs a few seconds to cover the entire range.
FEATURES
  • Extremely high efficiency
  • No waveform distortion is introduced by the stabilizer.
  • The output wave form is a virtual replica of input wave form
  • Low internal impedance.
  • Negligible phase shift ensuring no change in systems power factor.
  • The stabilization characteristics is independent of load magnitude
Main parts of servo controlled voltage stabilizer are
  • Transformer ( to low & high the incoming voltage )
  • Variac ( to select the specific voltage by moving clock wise & anti clock wise)
  • Servo motor ( To move the variac)
Unbalanced type voltage stabilizer

It consists 3 servo motors mounted on three Variacs & transformers independently connected in star . It stabilized the voltage in each phase independently so gives unique constant voltage in each phase.

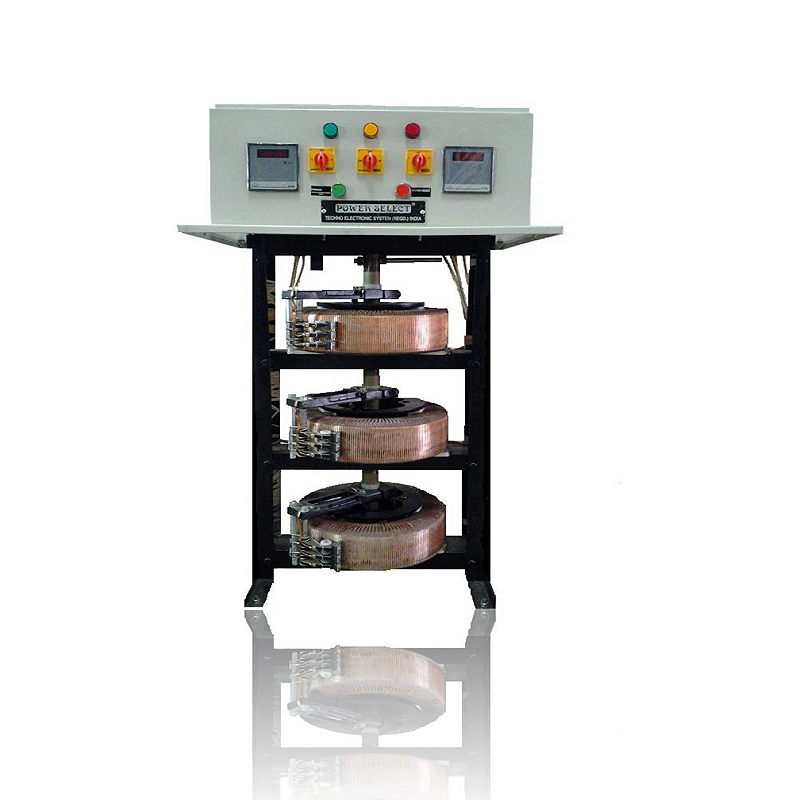

balanced type voltage stabilizer

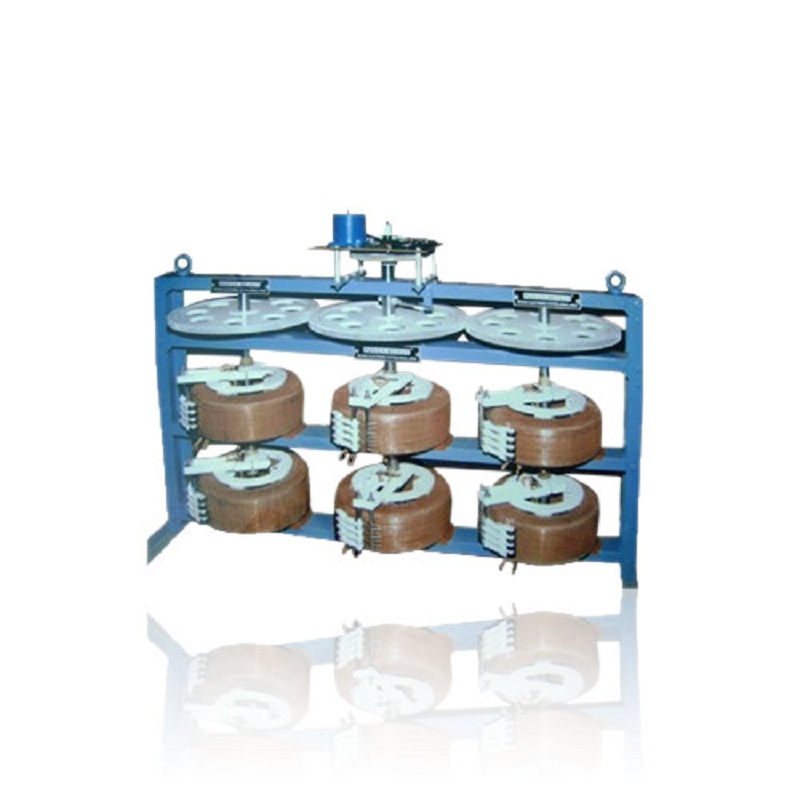

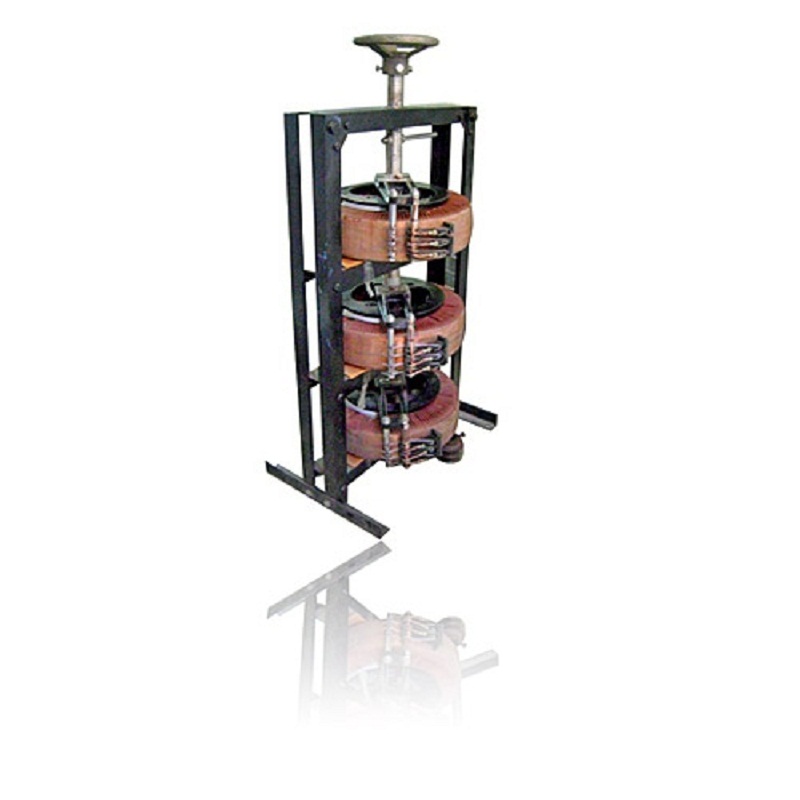

It consists a single phase servo motor ( one number ) mounted on three mechanically coupled variacs so it stabilized the voltage by one phase only ( as only one servo motor is there)

TECHNICAL SPECIFICATION OF SINGLE PHASE SERVO
  • Capacity : 1 Kva - 10 Kva
  • Input voltage range : 170 - 270 VAC, 140 - 270 VAC
  • Output voltage : 230 VAC setting (adjustable from 220 - 240 VAC
  • Operating frequency Output : 50 + 3Hz
  • Voltage indication : Digital or analog meter
  • Regulation : +1%
  • Efficiency : >95% at full load
  • Insulation : Class B

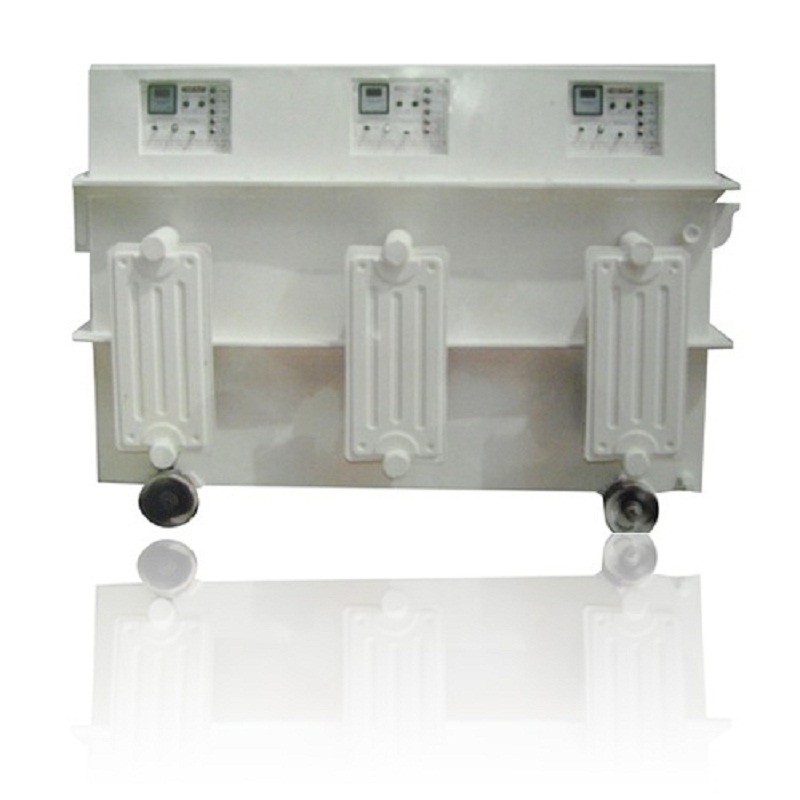

TECHNICAL SPECIFICATION OF THREE PHASE SERVO
  • Capacity : 3 Kva - 400 Kva
  • Input voltage range (P-P) : 340 - 460 VAC for unbalanced loads,295 - 465 VAC, 340 - 460 VAC for unbalanced loads.
  • Output voltage : 400 VAC setting ( adjustable from 380 - 415 VAC)
  • Operating frequency Output : 50 + 3Hz
  • Type : Balanced / Unbalanced
  • Regulation : +1%
  • Efficiency : >95% at full load
  • Insulation : Class B
  • Type of cooling : Air / Oil Cooled
  • Output voltage indication : Digital Voltmeter with phase selector switch (upto 50 Kva) Analog Voltmeteres for each phase (more than 50 Kva)
  • Correction rate per phase : Upto + 35 V / sec
  • Protection : Low / High voltage cut-off Overload with MCB short circuit with MCB single phasing preventation. Spike suppressor thermal overload protection panel.
  • Controls : Bypass (upto 50 Kva), phase selection switch to read phase to phase voltage RY, YB, BR or ON/OFF switch to read phase voltages R,Y,B panel indications output / normal output / low output high phases R,Y,B
Protections : ( Optional)
  • High & Low voltage cut off
  • Short circuit protection
  • Over load protection
  • Single phase protection
  • Bypass arrangement

I am a text block. Click on me to drag me around or click a corner handle to resize me. Click the settings icon (it's the left one, looks like a cog) to change this text. You can type new text into me or cut and paste text from somewhere else. Click outside of me when you're done and any changes will be saved.

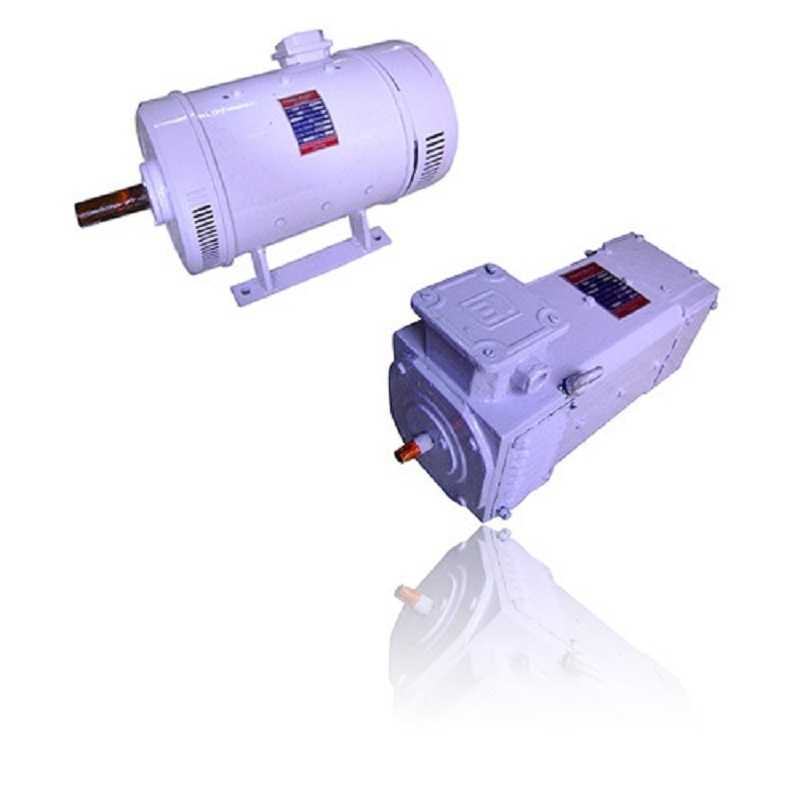

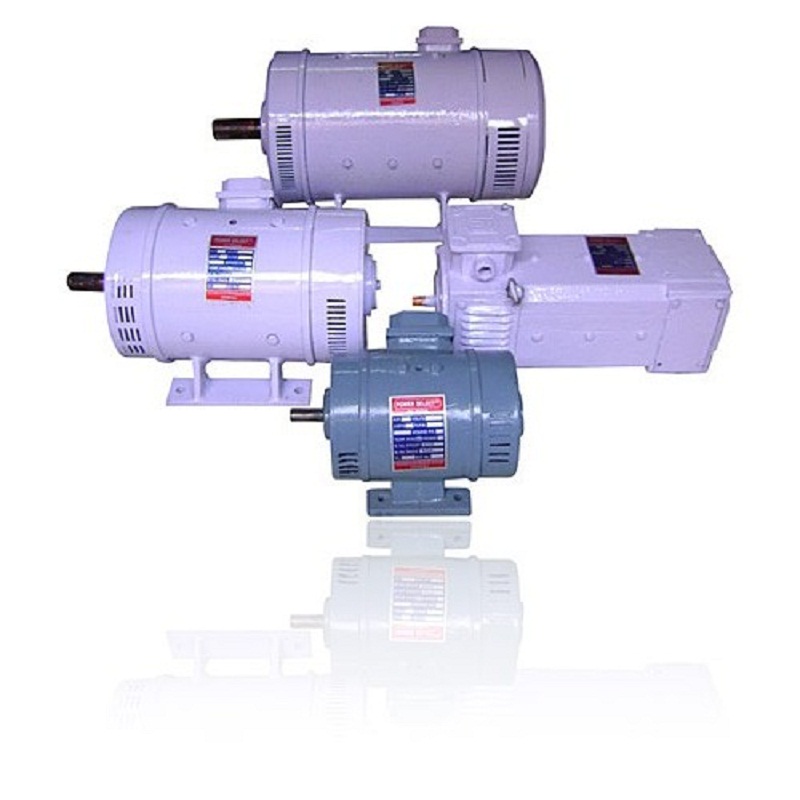

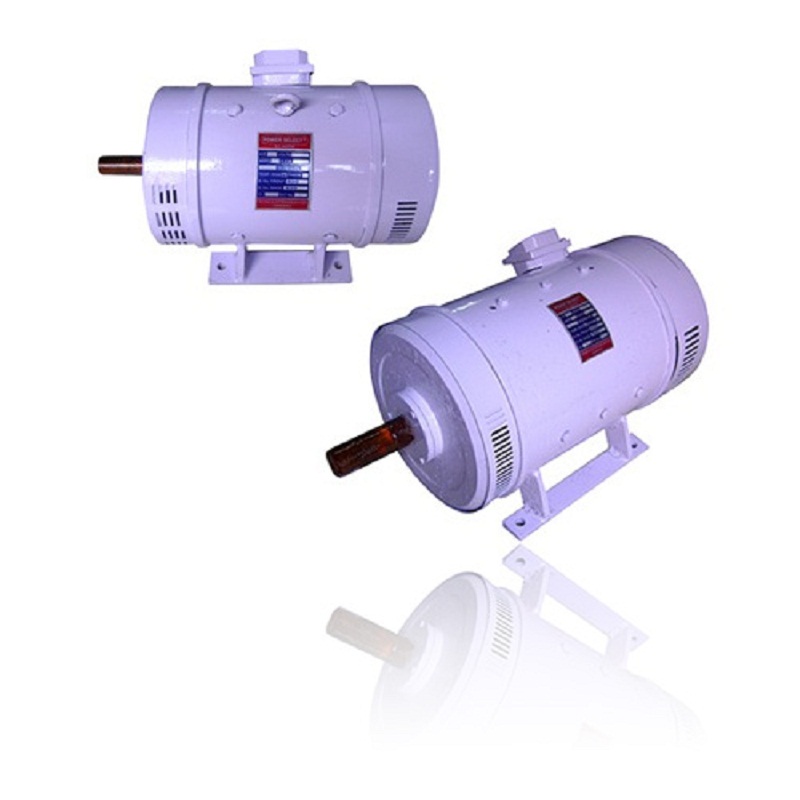

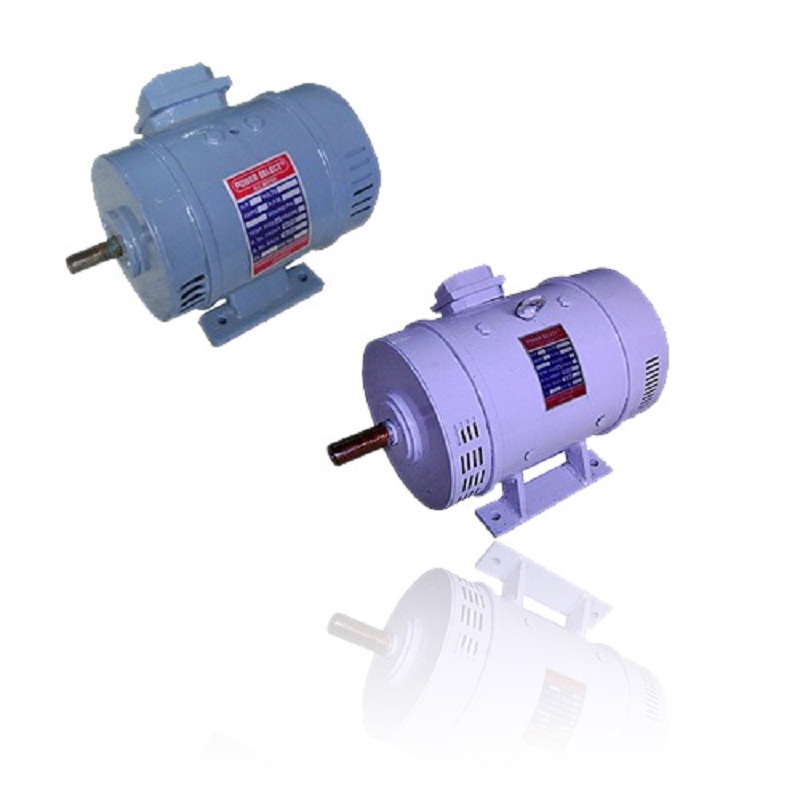

D.C MOTOR & D.C PANEL/DRIVE





We put forth for our clients a wide range of DC Shunt Motors, which is used for various power loading applications. These motors are manufactured using high grade raw material and holders are made up of superior quality brass that augments their long lasting life. Available in various voltages, these motors are also available in various technical specifications.
A DC Shunt motor is one of the three classes of Direct Current motors. These motors are classified by the way the armature and field windings are wound. A shunt wound motor will run at a constant speed regardless of the load. Such a motor is not usually recomended where starting conditionsa are severe. Speed may be controlled either by by inserting resistance in series with the armature or by inserting resistance in the field circuit.



D.C PANEL/DRIVE

DC drives consist of an SCR (Silicon Controlled Rectifier) bridge, which converts incoming three or single-phase AC volts to DC volts. During this conversion process DC drives then can regulate speed, torque, voltage and current conditions of the DC motor. This is ideal for industrial processes such as tube mills, extruders, mixers, paper machines and various other controlled applications.POWER SELECT can provide several DC Drives from different reputable manufactures. P

  • Controller : Speed Increase/Decrease
  • Voltage indication : Digital or analog meter
  • Load indication in AMP :Digital or analog meter
  • Selecter Switch : Forward/Reaverse
  • Indicator : Power Indicator
  • Fuse : Safety against short circuit
  • Push Button : Power On/Off
